PIC

Pic microcontroller entry level circuit. This system operates with a 9v. supply and an easy-to-solder long leg d.i.l. I.C. socket. The circuit uses a zener diode to step the voltage down from the 9v battery supply to approx 5v. Use QuickLink123+ software to configure the inputs and outputs you require.

This circuit uses a 13mm leg d.i.l. socket
Rapid Part No. 22-1715

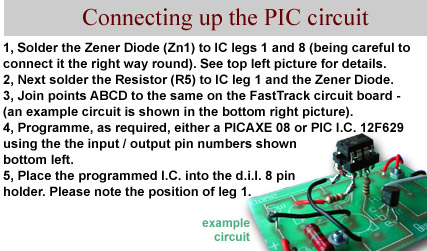

example

Fold the legs
1,3,6 and 8 and
remove legs
2,4,5, and 7
to help reduce
short circuits

Components Required

Zn1 = Zener Diode 5.1v
IC1 = 8 pin d.i.l. I.C. Socket
R5 = 1K Fixed Resistor 1/4 Watt
